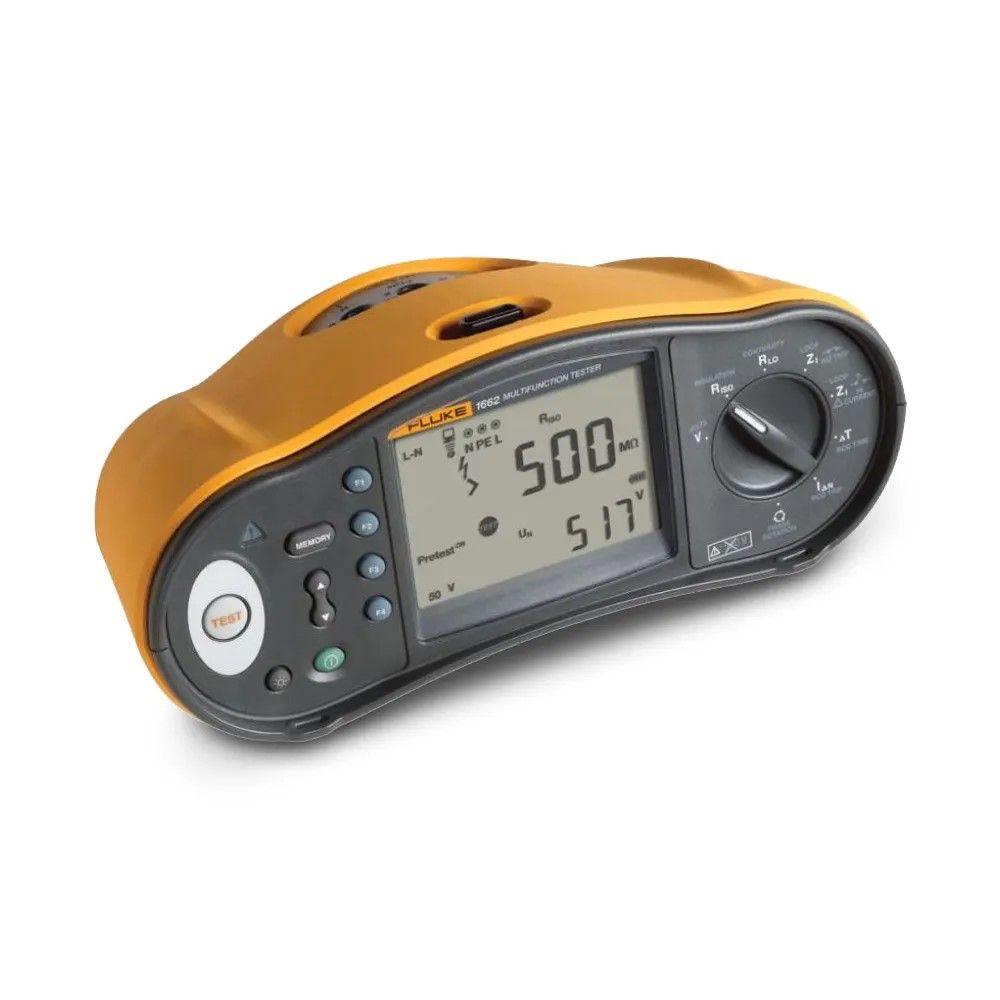

Multifunction Installation Tester With Memory

Product Code :FLU1662
Product Weight : 0.0
Product Dimensions : 0.0
Unit of Measure : EACH
Brand : Fluke
Availability :

Description: Key features
  • A solid, reliable, basic installation tester
  • Tests voltage and frequency
  • Checks wiring polarity to detect broken N wires
  • Measures insulation resistance and loop and line resistance
  • Measures motor windings with continuity test
  • Calculates prospective earth fault current (PEFC/IK) and prospective short-circuit current (PSC/IK)
    • Technical Specifications:
  • Size (L x W x H): 10 x 25 x 12.5 cm
  • Weight (incl. batteries): 1.3 (kg)
  • Battery size, quantity: Type AA, 6 ea.
  • Sealing: IP-40
  • Safety: Complies with EN/IEC 61010-1 and EN/IEC 61010-2-034
  • Overvoltage: CAT III / 500V; CAT IV 300V
  • Performance: EN61557-1 to EN61557-7 and EN61557-10
