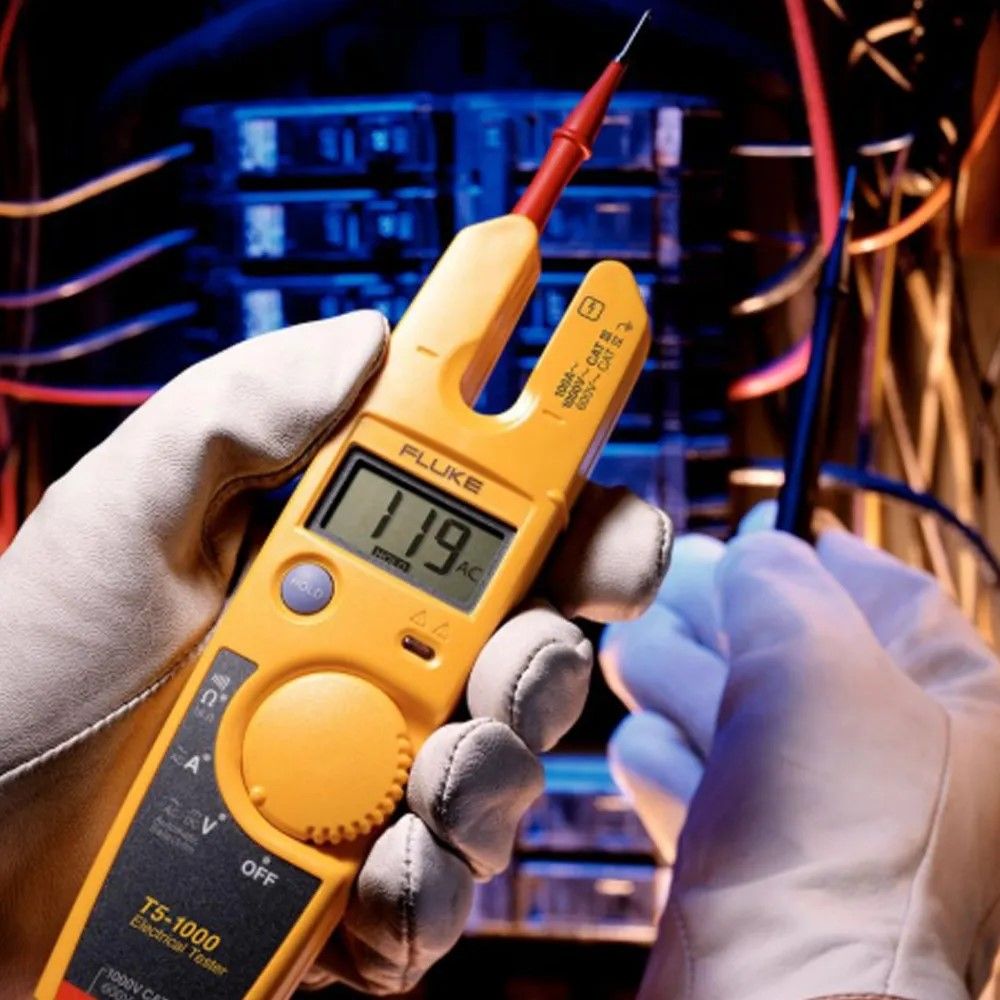

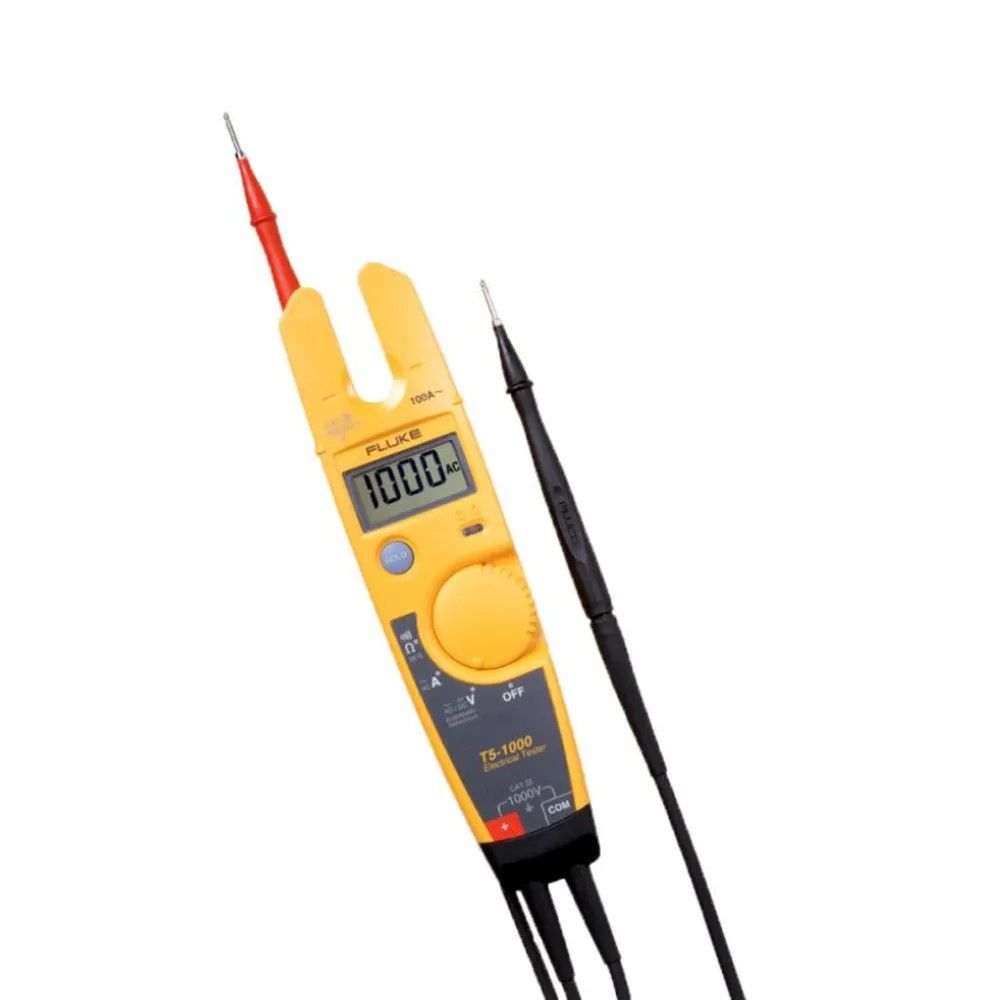

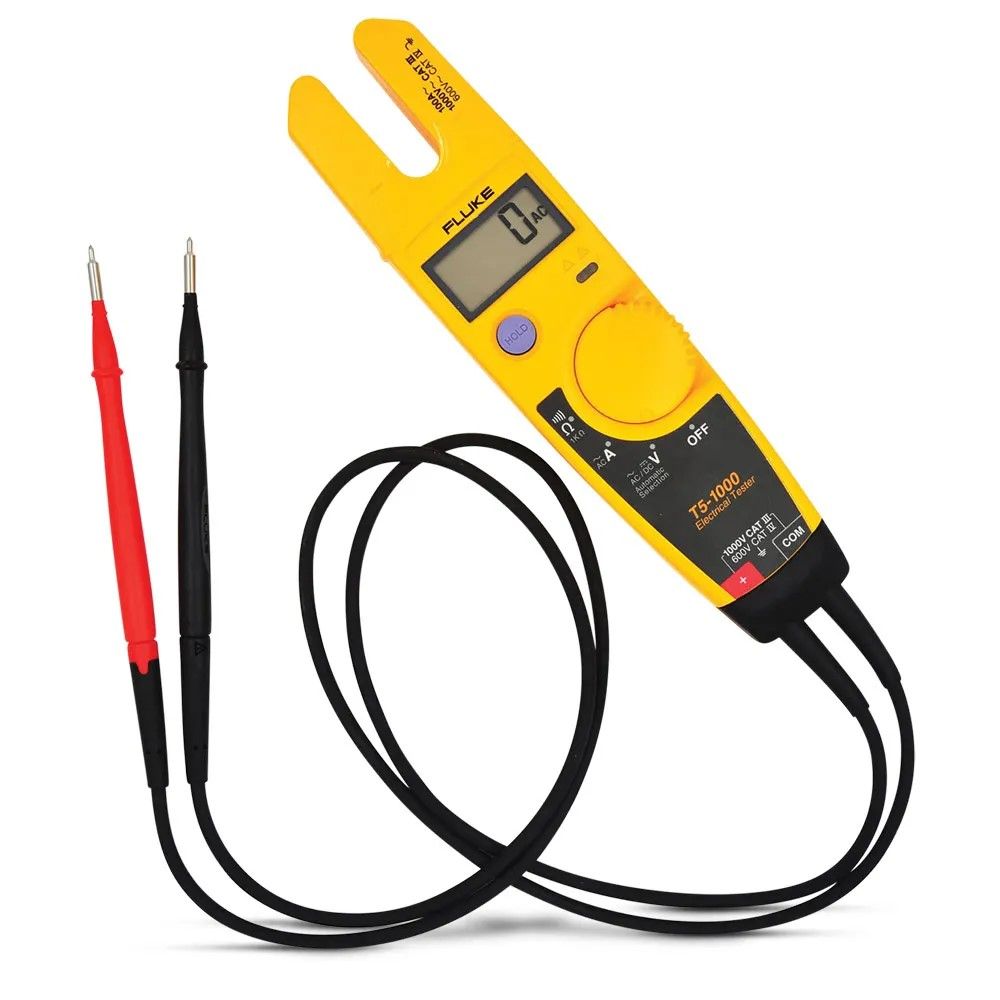

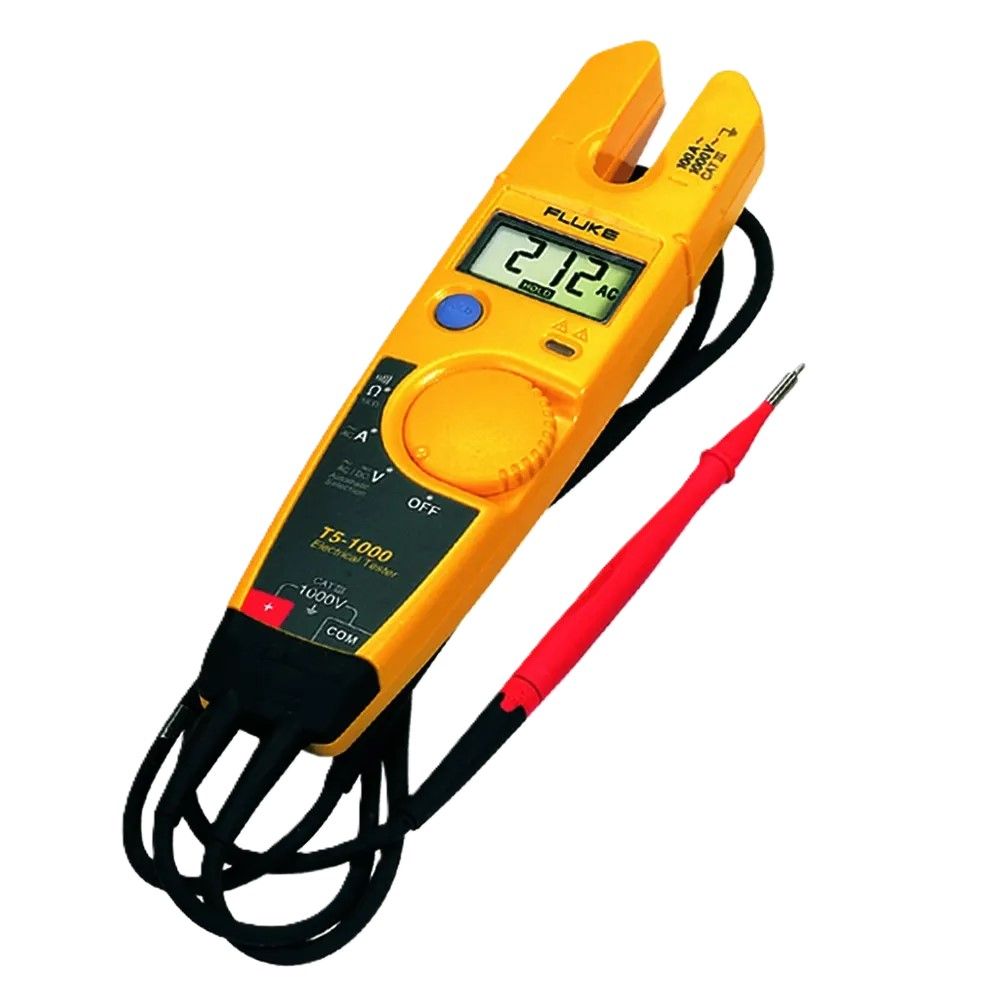

Voltage Continuity & Current Tester 1000V
Product Code :FLUT51000
Product Weight : 0.0
Product Dimensions : 0.0
Unit of Measure : EACH
Brand : Fluke
Availability :
Product Weight : 0.0
Product Dimensions : 0.0
Unit of Measure : EACH
Brand : Fluke
Availability :
Description:
Key features

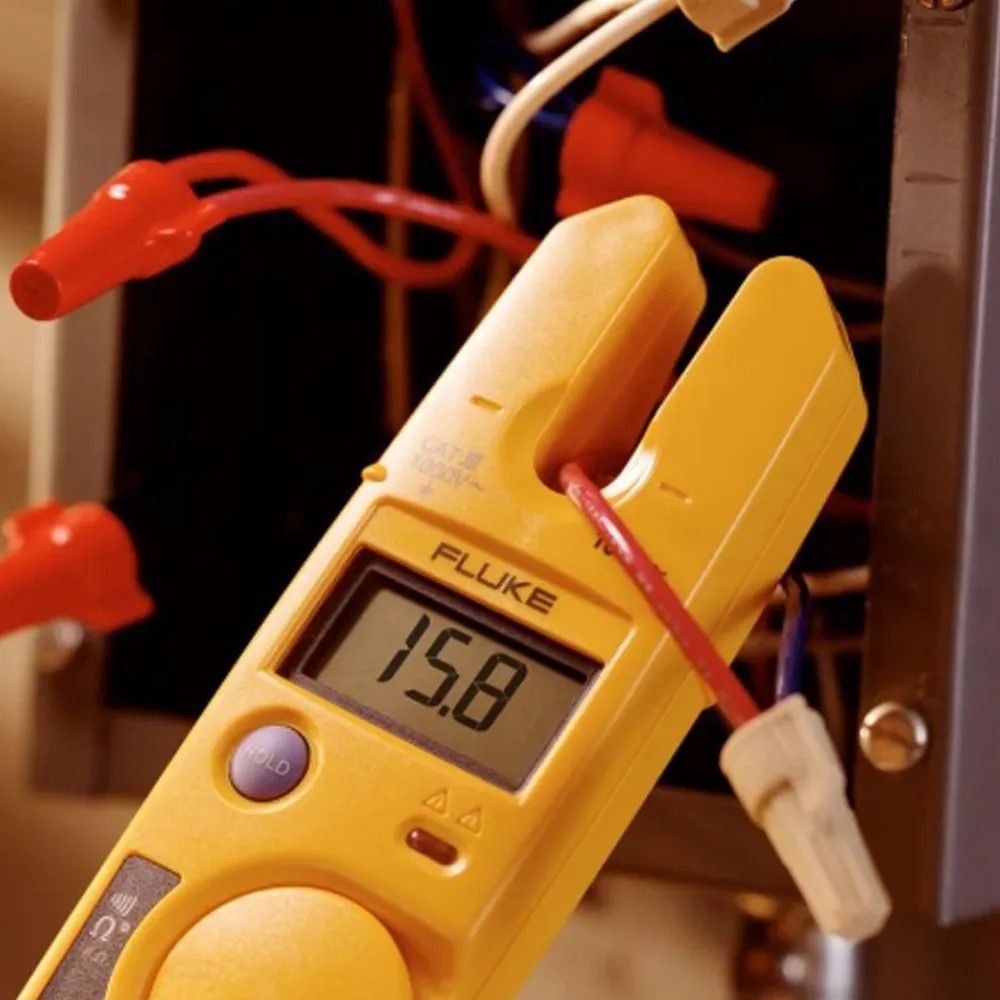

OpenJaw™ design: measure current without breaking the circuit
Tester automatically selects AC or DC voltage, up to 1000 V

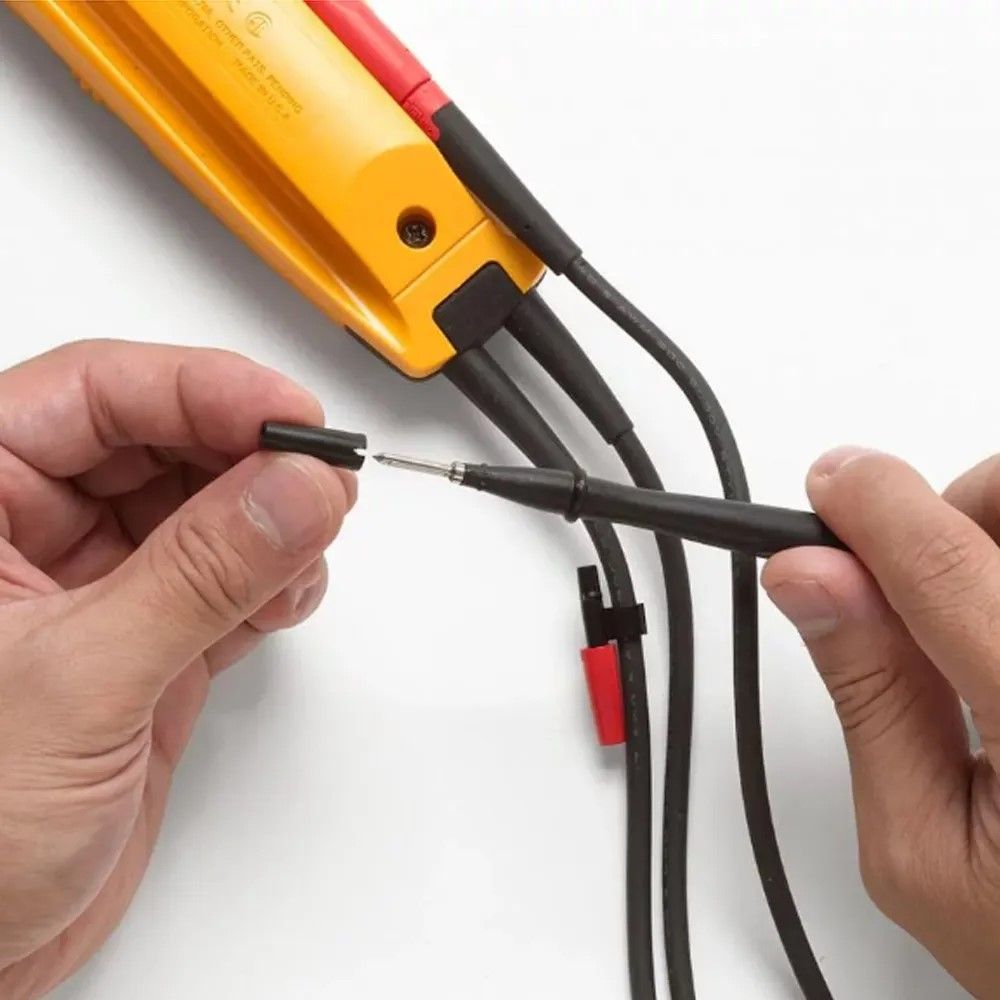

Work in tight spaces with detachable Slim Reach probe tips
| Category | Specification | Details |
|---|---|---|
| Specifications | Jaw Opening | 12.9 mm (0.5 in) |
| Max Wire Size | 1/0 THHN Cable | |
| Current Range AC RMS | 0 to 100.0 A | |
| Accuracy AC Current | 3% ± 3 counts (50/60 Hz) | |
| AC Response | Averaging | |
| Voltage Range AC/DC | 0 to 1000 V | |
| Voltage Accuracy | AC: 1.5% ± 2 counts DC: 1% ± 1 count | |
| Resistance Range | 0 to 1000 Ω | |
| Continuity Beeper Threshold | On at < 25 Ω, off at > 400 Ω | |
| Volts Indicator LED Threshold | Guaranteed on by 30 V AC | |
| Environmental | Operating Temperature | -10°C to 50°C |
| Storage Temperature | -30°C to 60°C | |
| Humidity |
0% to 95% (5°C to 30°C) 0% to 75% (30°C to 40°C) 0% to 45% (40°C to 50°C) | |
| Dust/Water Resistance | Yes | |
| Operating Altitude | 2000 meters max | |
| Temperature Coefficient | 0.1 × (specified accuracy)/°C (< 18°C or > 28°C) | |
| Safety | Measurement Category | IEC 61010-2-032, IEC 61010-2-033: CAT IV 600 V / CAT III 1000 V, 100 A AC |
| Agency Approvals | CSA, TUV | |
| Maximum Voltage | 1000 V between any terminal and earth ground | |
| Mechanical & General | Size | 30.5 x 51 x 203 mm |
| Weight | 300 g | |
| Warranty | Two-years | |
| Battery Life | 200 hour (zinc chloride), 400 hour (alkaline) | |
| Battery Type | 2 x AA | |
| Low Battery Indicator | Yes | |
| Current Sensor Opening | 12.9 mm |
