Dual Battery Isolator Kit 12V 100A Smart Start SBI Wiring & Fitting

Product Code :SBI12KIT
Product Weight : 0.0
Product Dimensions : 0.0
Unit of Measure : EACH
Brand : Redarc
Availability :

Description:

The REDARC 12V Smart Start Dual Battery Isolator and Wiring Kit (part number SBI12KIT) comes with everything required to install a Smart Start® Dual Battery Isolator, just plug and play.

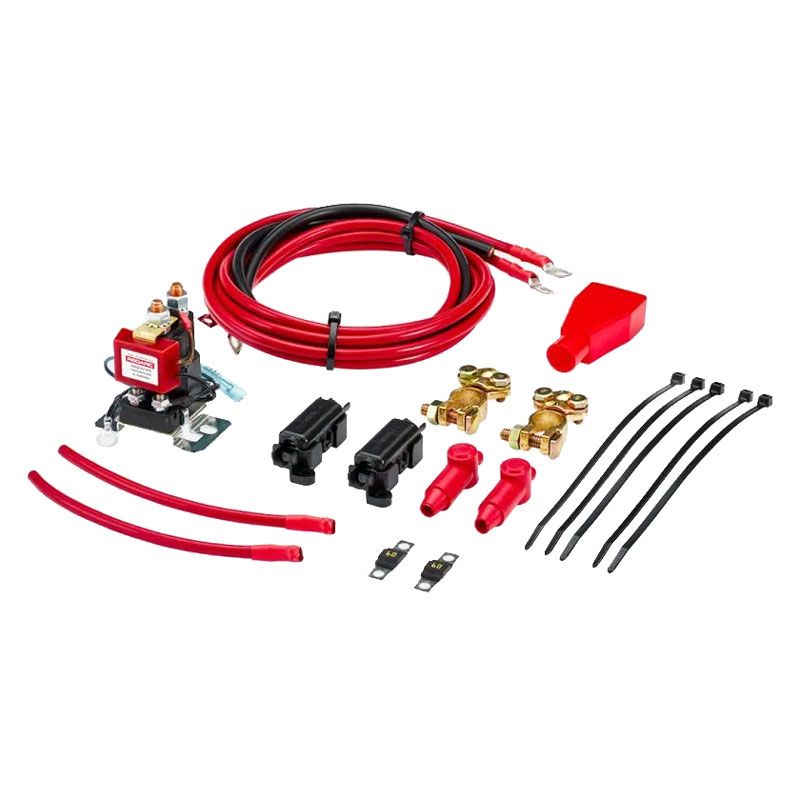

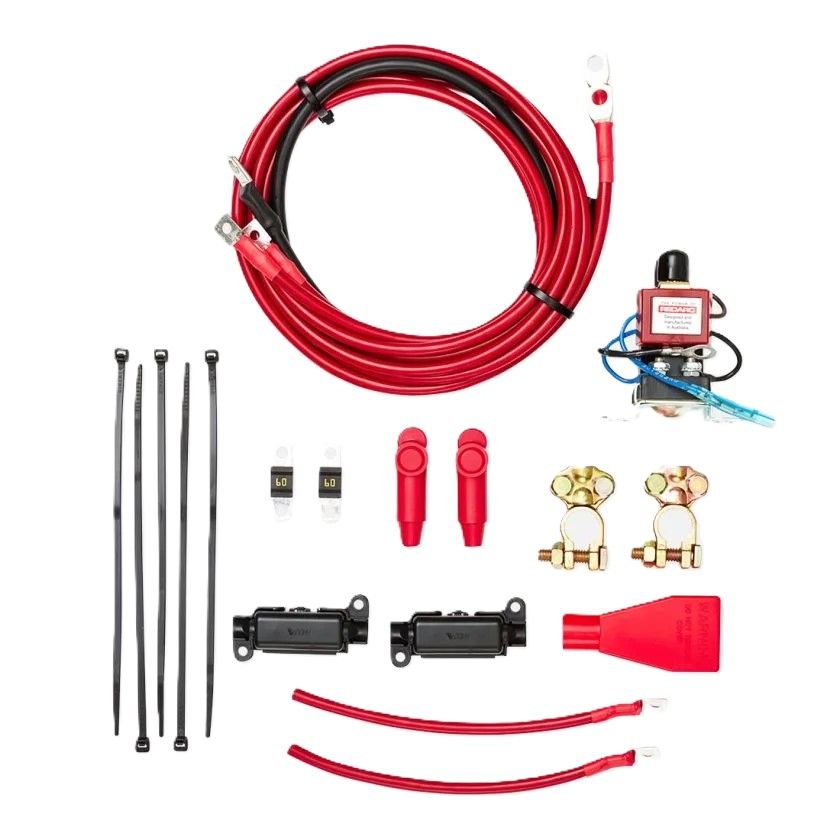

The Smart Start® Dual Battery Isolator and Wiring Kit (part number SBI12KIT) comes with everything required to install a Smart Start® Dual Battery Isolator including the Smart Start® itself. The SBI12KIT requires no crimping or soldering, it’s just plug and play. The SBI12KIT features high quality MTA 60 amp fuses and fuse holders with the corresponding ring terminals already attached to the wires.

Features
  • Prevents your secondary battery draining your main battery
  • Significantly extends battery life saving you money
  • Can be used in automotive and marine applications
  • Suitable for harsh environments
  • Easy to install complete kit
  • Full instruction booklet
    • Specification Value
    Max. Inrush Current400A
    Max. Continuous Current100A
    Turn On Voltage13.2V
    Turn Off Voltage12.7V
    Turn On Delay5 seconds
    Turn Off Delay10 seconds
    Standby Current<5mA
    Height70mm
    Width75mm
    Length80mm
    System Voltage12V
    Output Voltage12V DC
    Input Fuse Rating100A
    Output Fuse Rating100A
